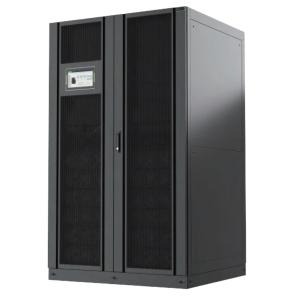

100~1200kVA
Three-phase input and output, dual-conversion online operation.
Widely used in various industries, including government, finance, telecommunications, education, transportation, meteorology, broadcasting, taxation, healthcare, energy, and power.
Full digital DSP control: Digital control for all power conversion stages, including rectification, inversion, charging, and discharging.
Component-level protection: Exceptional reliability and enhanced environmental adaptability.
Large color LCD touchscreen: 10-inch LCD touch display with intuitive graphical interface for user-friendly operation.
Intelligent self-diagnosis: Comprehensive fault logging and large-capacity historical data storage.
Scalability: Supports up to 3.2MW, making it the ideal choice for mega data centers.
Parameters
| Parameter | KM600/100 | KM800/100 | KM1000/100 | KM1200/100 |
| Capacity | 600 kVA / 600 kW | 800 kVA / 800 kW | 1 000 kVA / 1 000 kW | 1 200 kVA / 1 200 kW |
| Input Wiring | 3-phase + N + PE | |||
| Input Voltage (line/phase) | 380/400/415 VAC / 220/230/240 VAC | |||
| Input Frequency | 50 / 60 Hz | |||
| Power Factor | > 0.99 | |||
| THDi (100 % linear load) | < 3 % | |||
| Input Voltage Range (line) | 304–478 VAC (full load) 304–228 VAC (linear derate 100 %→50 %) | |||
| Input Frequency Range | 40–70 Hz | |||
| Battery Voltage | 3-wire: ±240 VDC (30–50 cells Configurable) 2-wire (option): 480 VDC (30–50 cells Configurable) | |||
| Charging Power | 20 % × active power | |||
| Bypass Voltage (line/phase) | 380/400/415 VAC / 220/230/240 VAC | |||
| Bypass Voltage Range | Field-settable Default –20 % ~ +15 %; selectable limits: +10, +15, +20, +25 % / –10, –15, –20, –30, –40 % | |||
| Overload Capacity (Bypass) | 110 % continuous; 101–125 % ≥ 5 min; 125–150 % ≥ 1 min; >150 % 1 s | |||
| Rated Output Voltage (line/phase) | 380/400/415 VAC / 220/230/240 VAC | |||
| Rated Output Frequency | 50 / 60 Hz | |||
| Output Power Factor | 1 | |||
| Voltage Accuracy | ±1.0 % | |||
| Dynamic Response | < 5 % (20 %–80 %–20 % step) | |||
| Recovery Time | < 20 ms (0 %–100 %–0 % step) | |||
| THDu | < 1 % linear < 5 % non-linear | |||
| Inverter Overload | 110 % 1 h → bypass; 125 % 10 min → bypass; 150 % 1 min → bypass; >150 % 200 ms → bypass | |||
| Frequency Accuracy | 0.10% | |||
| Tracking Range | Adjustable ±0.5 Hz – ±5 Hz (default ±3 Hz) | |||
| Tracking Rate | Adjustable 0.5–3 Hz/s (default 0.5 Hz/s) | |||
| Crest Factor | 3:01 | |||
| Phase Deviation | 120° ±0.5° | |||
| Efficiency (Main / Battery) | ≥ 97 % / ≥ 97 % | |||
| Display | LCD + LED + 10-inch color touch screen | |||
| Safety | IEC 62040-1, IEC 60950-1 | |||
| EMC | IEC 62040-2; IEC 61000-4-2 (ESD); IEC 61000-4-3 (RS); IEC 61000-4-4 (EFT); IEC 61000-4-5 (Surge) | |||
| Protection Class | IP20 | |||
| Standard Interfaces | USB, RS232, RS485, dry-contacts, battery cold-start, dust filter | |||
| Options | SNMP card, extended dry-contacts, parallel kit, surge kit, APP/WiFi/Bluetooth | |||
| Operating / Storage Temperature | 0–40 °C / –25 °C – +70 °C | |||
| Relative Humidity | 0–95 % non-condensing | |||
| Noise @ 1 m | 72 dB @ 100 % load 69 dB @ 45 % load | |||
| Cabinet (W×D×H) mm | 800×1000×2000 | 1200×1100×2000 | ||
| Module (W×D×H) mm | 475×705×140 | |||
| Disclaimer: Continuous product improvement may cause specifications to change without notice. This document is for reference only and does not constitute any offer or commitment. | ||||
