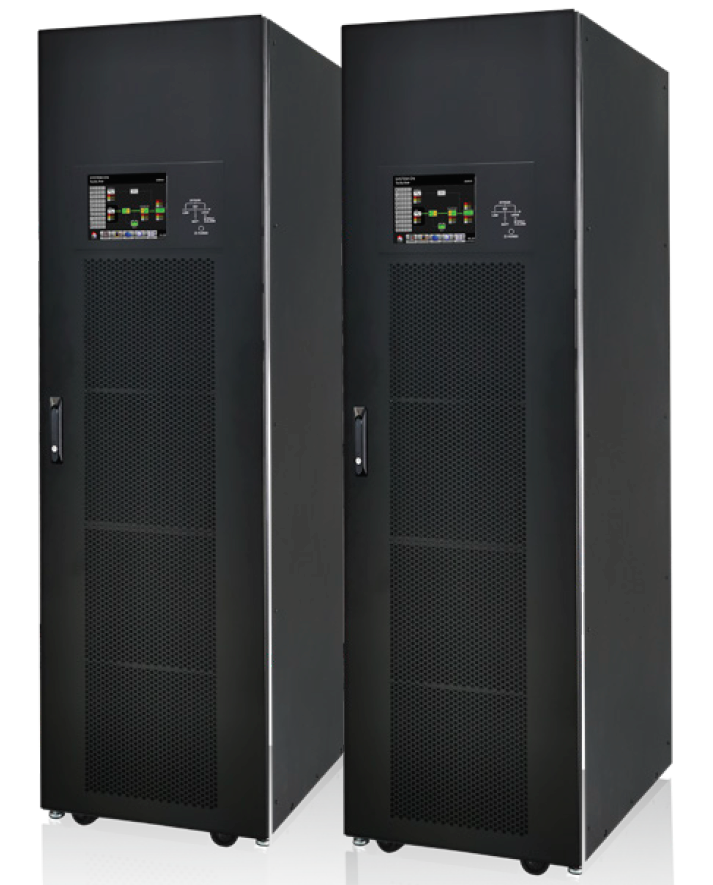

APlus Modular UPS (50kW Module) 200kVA 300kVA 400kVA 500kVA

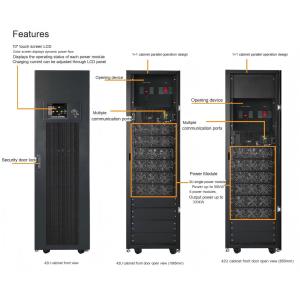

Product Features
3U single power module delivers up to 50kW
Single 42U cabinet: Capacity up to 500kW
Supports N+1 power system redundancy
Modular design reduces MTTR (Mean Time To Repair)
High scalability
Built-in maintenance bypass switch: Easy maintenance without output interruption
High-efficiency dual-conversion online UPS
Flexible battery configuration and adjustable charging current
High overload capability
Walk-in power function
Models A+ 42U-200S (PM-50S), A+ 42U-300 (PM-50), and A+ 42U-500 (PM-50) can be optionally configured with 4 switches.
PARAMETERS
| Module | A+ 420J-200S (PM-50S) | A+ 420J-300S (PM-50S) | A+ 420J-300 (PM-50) | A+ 420J-400 (PM-50) | A+ 420J-500 (PM-50) |
| Phase | 3-in 3-out |
| Cabinet Capacity* | 200kW | 300kW | 300kW | 400kW | 500kW |
| Battery Type | External Battery |
| Power Module Capacity | 50kVA/50kW |
| Max Number of Power Modules | 4 | 6 | 6 | 8 | 10 |
| Wiring Method (Rear) | Bottom Entry | Top Entry | Top/Bottom Entry |
| Number of Switches | 2 |
| INPUT |
| Rated Voltage | 3X380/400/415VAC (3PH+N) |
| Voltage Range | 110-300VAC @50% load,176-276VAC @100% load |
| Nominal Frequency | 50/60Hz (Auto Detection) |
| Frequency Range | 40-70Hz |
| Power Factor | >0.99 @100% load,>0.98 @50% load |
| THDI | <4% @100% load |
| OUTPUT |
| Rated Voltage | 3X380/400/415VAC (3PH+N) |
| Voltage Regulation (Static) | ≤±1% typical (balanced load),≤±2% typical (unbalanced load) |
| Nominal Frequency | 50/60Hz |
| Frequency Range (Sync) | 46-54Hz or 56-64Hz |
| Overload Capacity | ≤110%: 60 minutes;111%-125%: 10 minutes;126%-150%: 1 minute;＞150%: 200 milliseconds |
| THD | ≤2% (linear load);<4% (non-linear load) |
| Efficiency | 95.50% | 95.50% | 95.50% | 95.50% | 95.50% |
| Battery/Charging |
| Rated Voltage | ±192V-±240V (Selectable) |
| Maximum Voltage | ±240V (12VX40 cells) |
| Minimum Voltage | ±192V (12VX32 cells) |
| Float Charge Voltage | 2.28V/cell (2.25-2.33V selectable) |
| Equalize Voltage | 2.35V/cell |
| Temperature Compensation | Yes |
| Max Charging Current (per module) | 12A (Adjustable) | 12A (Adjustable) | 12A (Adjustable) | 12A (Adjustable) | 12A (Adjustable) |
| Physical Specifications |
| Cabinet Dimensions (DXWXH, mm) | 850X600X2000 | 850X600X2000 | 1065X600X2010 | 1100X600X2010 | 1065X1000X2000 |
| Net Weight (kg) | 275 | 282 | 287 | 308 | 420 |
| Operating Environment |
| Operating Temperature | 0-40℃ |
| Relative Humidity | 0-95% (non-condensing) |
| Altitude* | Rated power <1000m |
| IP Rating | IP20 |
| Control & Management |
| RS-232/USB | Windows series, Linux, Mac |
| SNMP (Optional) | SNMP card and browser management |
| Safety Standards |
| Safety | IEC/EN 62040-1 |
| EMC | IEC/EN 62040-2 Category C3 |
| Note: |
|
| If the UPS is installed or used at an altitude above 1000m, the output power must be reduced by 1% per 100m. |
| Model | Description | Dimensions (DXWXH, mm) | Weight (kg) |
|
|
| PM-50 | 3-in/3-out 50kVA/50kW Power Module | 750X438X130 (3U) | 39 |
|
|
| PM-50 (S) | 3-in/3-out 50kVA/50kW Power Module | 650X442X130 (3U) | 36 |
|
|
